DIN-A-MITE® B
Watlow controls
DIN-A-MITE® family of power controllers

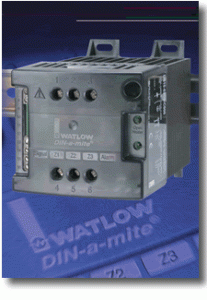

Watlow’s DIN-A-MITE® Style B power controller provides a Iow-cost, highly compact and versatile solid state option for controlling electric heat. You also get all the quality you expect from a Watlow designed and manufactured product. DIN rail and back panel mounting are standard on every control. There is no need to worry about mercury; the DIN-A-MITE® controller is mercury free.
Capabilities include single-phase and three-phase zero cross switching up to 40 and 22 amps, respectively, at 600V~(ac) (see rating curve). A unique, integrated design removes the guesswork associated with selecting a proper heatsink and adequate terminations for the application.
Variable time base, 4-20mA process control or V~(ac/dc) input contactor versions are available. A shorted SCR alarm option is also available. All configurations are model number dependent and factory selectable.
The DIN-A-MITE® power controller is made in the USA.
Features
DIN rail or standard panel mount
Compact size
Touch-safe terminals
Single- and three-phase power
No mercury
Faster switching with solid state
ULR 508 listed and C-UL,VDE 0160, and CE with filter
Back-to-back SCR design
Shorted output detector (optional)
Benefits
Versatile, quick and low-cost installation
Reduced panel space; less cost
Increased safety for installer/user
Permits use in a variety of applications
Environmentally safe product
Saves energy and extends heater life
Applications requiring agency approval
Rugged design
Notifies you in case of a shorted SCR
